Pressure, Temperature & Gas Control Solutions
Leading Manufacturers and Wholesaler of Lx 809 Side Mounted Magnetic Level Switch, Lx 811 Pressure Vacuum Temperature Gauge, Lx 817 Flush Diaphragm Pressure Switch, Lx 818 Gas Pressure Regulator, Lx 818 Stainless Steel Gas Pressure Regulator, Lx 819 Flameproof Temperature Sensor, Lx 820 Flameproof Digital Temperature Indicator, Lx 821 Digital Temperature Indicator Controller, Lx 822 Thermocouple Rtd Thermowell Sensor and Lx 833 Weatherproof Pressure Switch from Indore.
| Business Type | Manufacturer, Supplier |
| Usage | Tank Overflow Prevention / Dry Pump Running Protection,Tanks And Process Vessels |
| Brand Name | Linex Flowsense |
| Type | Magnetic Level Switch |
| Model Number | LX 809 |
| Mounting Type | Side Mounted |
| Minimum Connection Size | 25 NB Flange |
| Flange Type | Standard / Square Flange (On Request) |
| Housing Material | Aluminum Die Cast |
| Protection Type | Weather Proof / Flame Proof |
| Temperature Option | High Temperature Version Available On Request |
| Function | High / Low Liquid Level Control |

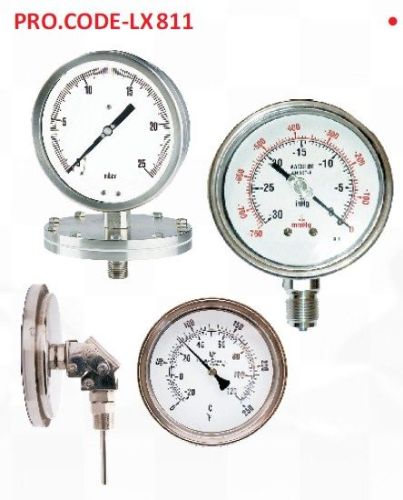

| Business Type | Manufacturer, Supplier |
| Application | Pressure, Vacuum And Temperature Measurement |
| Model Number | LX 811 |
| Type | Pressure / Vacuum / Temperature Gauge |
| Material | MS / SS304 / SS316 |
| Dial Size | 50 Mm To 300 Mm |
| Connection Type | BSP / NPT 3/8 |
| Pressure Range | 0 To 300 Kg |
| Brand Name | Linex Flowsense |
| Wetted Parts Material | SS304 / SS316 / SS316L / Hastelloy |
| Seal Type | Diaphragm Sealed / Chemical Sealed |
| Vacuum Range | 0 To 760 MmHg |
| Temperature Range | 0°C To 500°C |

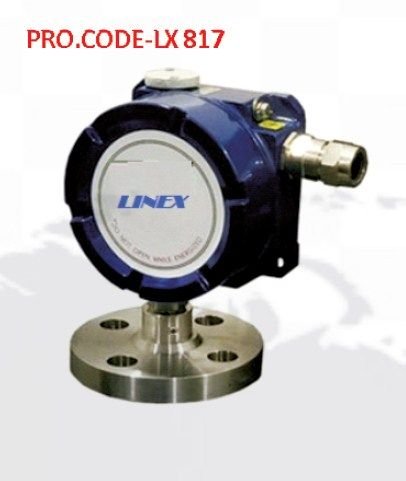

| Business Type | Manufacturer, Supplier |
| Usage | Viscous Material Handling |
| Electrical Connection | Screw Terminals |
| IP Rating | IP67 |
| Pressure Range | Vacuum / Compound Range -1 To 4 Bar |
| Type | Pressure Switch |
| Brand | Linex Flowsense |
| Model Number | LX 817 |
| Switch Type | Flush Diaphragm |
| Media Type | Liquid |
| Range Setting | Adjustable |
| Contact System | SPDT |
| Positive Pressure Range | Up To 100 Bar |

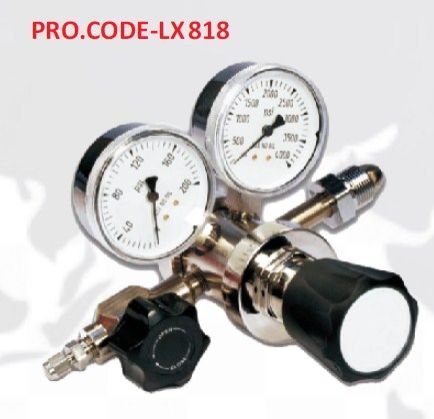

| Business Type | Manufacturer, Supplier |
| Type | Pressure Regulator |
| Material | SS304 / SS316 / SS316L / Hastelloy C |
| Application | Gas Pressure Control And Regulation,Industrial Gas Handling Systems |
| Brand Name | Linex Flowsense |
| Model Number | LX 818 |
| Wetted Parts Material | SS304 / SS316 / SS316L / Hastelloy C |
| Connection Type | BSP / NPT Screwed End / Flanged End |
| Size Options | 3/8 Inch / 1/2 Inch |
| Pressure Rating | Up To 220 KG/CM² |
| Suitable Gases | Hydrogen, Methane, Carbon Dioxide, Oxygen, Nitrogen, Air, Acetylene, Helium, Argon, Nitrous Oxide |
| Construction Type | Corrosion Resistant |

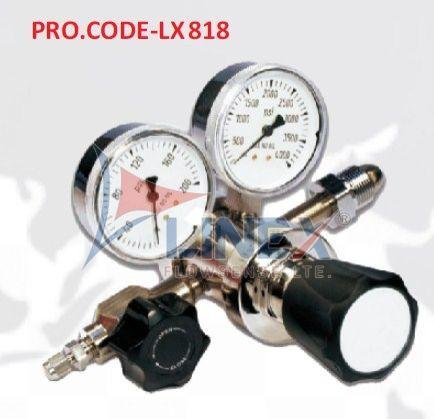

| Business Type | Manufacturer, Supplier |
| Type | Pressure Regulator |
| Material | SS304 / SS316 / SS316L / Hastelloy C |
| Application | Precision Gas Pressure Regulation,Industrial Gas Distribution Systems |
| Feature | Corrosion Resistant Construction |
| Brand Name | Linex Flowsense |
| Model Number | LX 818 |
| Wetted Parts | SS304 / SS316 / SS316L / Hastelloy C |
| Connection Type | BSP / NPT Screwed End / Flanged End |
| Size | 3/8 Inch / 1/2 Inch |
| Pressure Rating | Up To 220 KG/CM² |
| Compatible Gases | Hydrogen, Methane, CO2, Oxygen, Nitrogen, Air, Acetylene, Helium, Argon, Nitrous Oxide |
| Business Type | Manufacturer, Supplier |
| Type | Temperature Measurement Sensor |
| Brand | Linex Flowsense |
| Model Number | LX 819 |
| Material | SS304 / SS316 / SS316L / PTFE / Alloy |
| Sensor Type | PT100 Duplex |
| Temperature Range | -100°C To 300°C |
| Sensor Mounting | Direct Mount |
| Transmitter Output | Duplex 4-20 MA |
| Protection Rating | IP67 |
| Temperature Classification | T6 |
| Enclosure Material | Die Cast Aluminum |
| Stem Size | 6 Mm / 8 Mm / 10 Mm X 50 Mm To 3000 Mm |
| Process Connection | 1/2 Inch NPT (M) Fixed / Adjustable |
| Business Type | Manufacturer, Supplier |
| Type | Flameproof Temperature Indicator |
| Material | Die Cast Aluminium |
| Power Supply | 230 VAC ±10%, 50 Hz |
| Display Type | 3½ Digit Bright Red LED |
| Accuracy | ±0.25% FSD / ±1 Digit |
| Application | Temperature Monitoring And Control In Hazardous Areas |
| Brand Name | Linex Flowsense |
| Model Number | LX 820 |
| Input Options | TC / 4-20 MA DC / Pt-100 |
| Relay Output | ON/OFF / Time Proportional / PID |
| Set Point Type | Single / Double / Three Set Point |
| Set Point Adjustment | Separate For Each Channel |
| Business Type | Manufacturer, Supplier |
| Size | 72x72 / 96x48 / 96x96 / 192x96 Mm |
| Application | Temperature Monitoring And Indication,Industrial Process Temperature Control Systems |
| Brand Name | Linex Flowsense |
| Model Number | LX 821 |
| Type | Temperature Indicator |
| Accuracy | ±0.5% Of Specified Range |
| Display Type | 3.5 Digit / 4.5 Digit Red 7-Segment LED |
| Body Material | ABS Plastic / Metal Powder Coated / Aluminium Die Cast |
| Input Compatibility | Thermocouple Type J, K / RTD Pt-100 / 2 Or 3 Wire |
| Power Supply | 230 VAC / 110 VAC ±10%, 50/60 Hz |
| Enclosure Option | Flameproof / Standard Metal Enclosure |

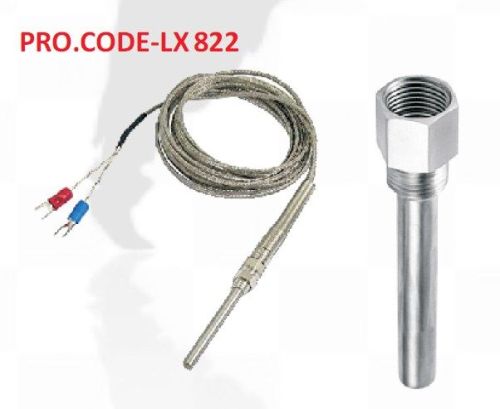

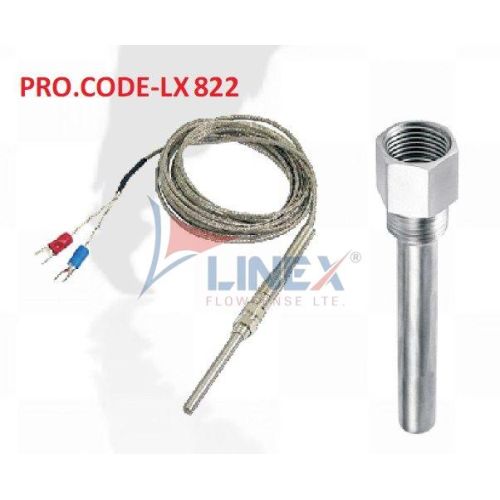

| Business Type | Manufacturer, Supplier |
| Brand Name | Linex Flowsense |
| Model Number | LX 822 |
| Type | Thermocouple / RTD / Thermowell |
| Material | SS304 / SS316 / SS316L / PTFE |
| Temperature Range | -270°C To 1260°C |
| Application | Temperature Sensing And Monitoring,Process Control And Industrial Temperature Measurement |
| Output Signal | 4-20 MA / 0-10 V DC |
| Size Range | 6 Mm To 20 Mm |
| Input Option | RTD / Temperature Sensing Element |
| Construction Type | Corrosion Resistant |
| Installation Type | Inline / Equipment Mounted |
| Business Type | Manufacturer, Supplier |
| Material | SS316 |
| Type | Pressure Switch |
| Brand | Linex Flowsense |
| Model Number | LX 833 |
| Sensing Element | Diaphragm / Piston SS316L |
| Enclosure Type | Weatherproof Die Cast Aluminium |
| Protection Rating | IP65 |
| Electrical Rating | 5A / 15A 250 VAC |
| Scale Accuracy | ±3% Of FS |
| Differential Type | Fixed / Adjustable |
| Process Connection | 1/4 Inch BSP (F) |
| Cable Entry | 3/4 Inch ET |
| Mounting Type | Wall / Pipe Mount |
