Flameproof Safety, Lighting & Electrical Equipment
Leading Manufacturers and Wholesaler of Lx 823 Flameproof Reactor Vessel Lamp, Lx 824 Flameproof LED Bulk Head Light, Lx 825 Flameproof LED High Bay Light, Lx 826 Stainless Steel Flame Arrester, Lx 827 Tank Mounted Breather Valve, Lx 828 Industrial Hooter With Flashlight, Lx 829 Flameproof Alarm Hooter, Lx 830 Flameproof Rotary On Off Switch, Lx 831 Flameproof Switch Socket With Plug Top and Lx 832 Flameproof Hooter With Accept Button from Indore.
| Business Type | Manufacturer, Supplier |
| Type | Reactor Vessel Lamp |
| Material | Die Cast Aluminium |
| Brand | Linex Flowsense |
| Model Number | LX 823 |
| Product Type Variant | Flameproof RV Lamp |
| Supply Voltage | 85 VAC To 300 VAC |
| Lamp Compatibility | 100W GLS Lamp / 23W CFL |
| Control Option | Switch / Timer Circuit Fixture |
| Mounting Type | Industrial Equipment Mounting |
| Usage | Internal Vessel Illumination |
| Application | Reactor Vessels And Hazardous Process Environments |
| Construction | Heavy Duty Flameproof Design |

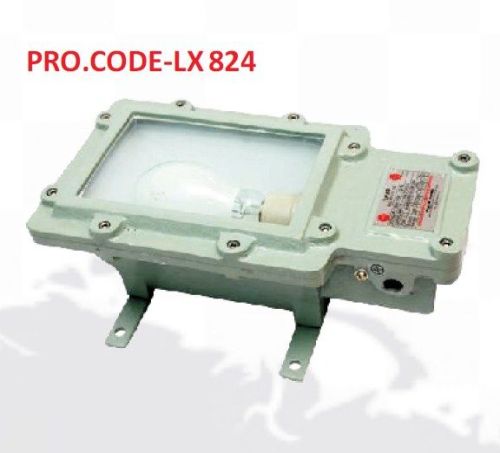

| Business Type | Manufacturer, Supplier |
| Light Type | LED |
| IP Rating | IP66 |
| Brand | Linex Flowsense |
| Wattage | Up To 60W |
| Application | Industrial Illumination |
| Body Material | Die Cast Aluminium |
| Model Number | LX 824 |
| Product Type | Flameproof Bulk Head Light |
| Power Supply | 230V AC / 24V DC |
| Light Color | Cool White |
| Installation Style | Suspended |
| Construction Type | Flameproof Heavy Duty Design |

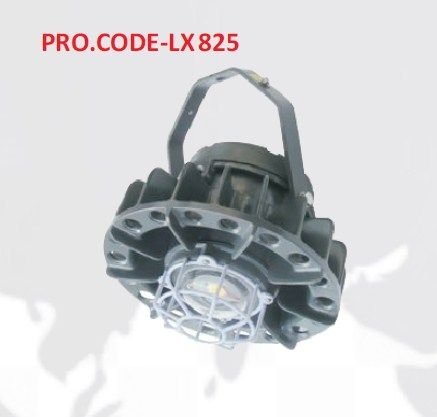

| Business Type | Manufacturer, Supplier |
| Brand | Linex Flowsense |
| Type | Flameproof LED Light |
| Material | Die Cast Aluminium |
| Model Number | LX 825 |
| Power Supply | 90-305 VAC (50/60 Hz) |
| Wattage | Up To 60W |
| LED Type | High Lumens OSRAM LED |
| Color Temperature | 6500K |
| CRI | >80 |
| Power Factor | >0.95 |
| Protection Features | EMI/EMC Protected / THD <10% |
| IP Rating | IP66 |
| Usage | Hazardous Area Illumination |

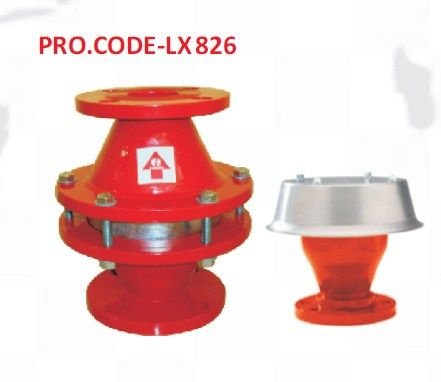

| Business Type | Manufacturer, Supplier |
| Brand Name | Linex Flowsense |
| Model No | LX 826 |
| Type | Flame Arrester |
| Material | Stainless Steel / A216 GR WCB / A351 GR CF8 / CF8M / CF3 |
| Application | Flame Propagation Prevention,Industrial Tank Vent And Hazardous Process Safety Systems |
| Element Plate Material | SS316 |
| Element Mesh Material | SS321 |
| Hood Material | Carbon Steel / Stainless Steel |
| Size Range | 1 Inch (DN25) To 20 Inch (DN500) |
| Contact Rating | 50VA |
| Maximum Switching Voltage | 240V AC / 200V DC |

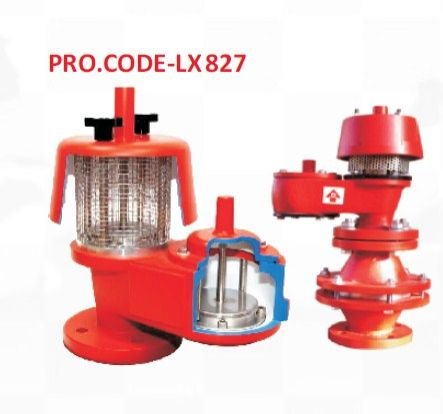

| Business Type | Manufacturer, Supplier |
| Mounting Type | Flanged Tank Mounting |
| Application | Pressure And Vacuum Relief Control,Storage Tanks And Process Venting Systems |
| Brand | Linex Flowsense |
| Model Number | LX 827 |
| Product Type | Breather Valve |
| Body Material | Stainless Steel / A216 GR WCB / A351 GR CF8 / CF8M / CF3 |
| Body Size & Rating | 2 Inch / 3 Inch / 4 Inch ANSI B16.5 Class 150 |
| Relief Set Pressure | 20 Mm WCG To 600 Mm WCG |
| Vacuum Setting | 20 Mm To 600 Mm WCG |
| Temperature Capability | 45°C To 200°C |
| Compatible Parts | Different Elastomeric Parts |

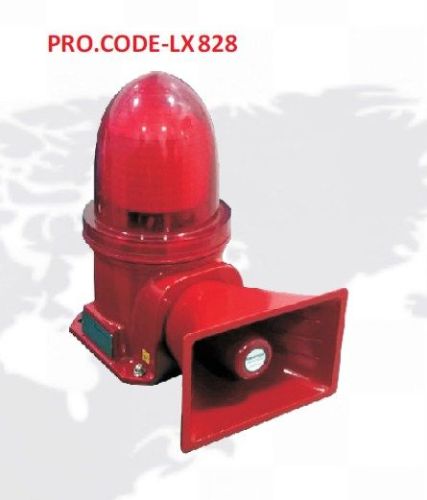

| Business Type | Manufacturer, Supplier |
| Application | Audible And Visual Industrial Alarm Indication |
| Brand | Linex Flowsense |
| Model Number | LX 828 |
| Product Type | Industrial Hooter With Flashlight |
| Body Material | Die Cast Aluminium,Moulded Plastic |
| Input Power | 15W RMS |
| Ingress Protection | IP66 |
| Electrical Rating | 230V AC |
| Sound Output | 110 DB / 15W / 1 Meter |
| Impedance | 8 Ohms |
| Frequency Response | 300–5000 Hz |
| LED Quantity | 300 Nos |
| Light Intensity | 600–630 NM |

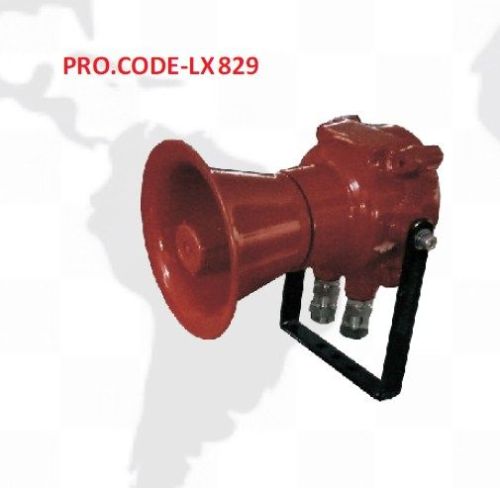

| Business Type | Manufacturer, Supplier |
| Brand Name | Linex Flowsense |
| Type | Flameproof Hooter |
| Material | Die Cast Aluminium |
| Usage | Hazardous Area Audible Alarm Signaling |
| Model Number | LX 829 |
| Ingress Protection | IP66 |
| Input Power | 10W RMS / 13V |
| Impedance | 8 Ohm |
| Power Supply | 230V AC / 110V AC / 12V DC / 24V DC |
| Sound Output | 90 DB / 6W / 1 Meter |
| Frequency Response | 300-5000 Hz |
| Cable Entry | 2 Nos / 3/4 ET / 1/2 Inch NPT |

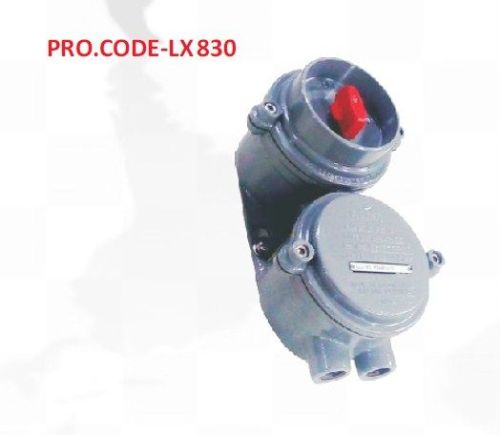

| Business Type | Manufacturer, Supplier |
| Brand Name | Linex Flowsense |
| Type | Flameproof Rotary Switch |
| Material | Die Cast Aluminium |
| Current Rating | 16A / 25A |
| Voltage | 230V / 415V |
| Application | Electrical Circuit Switching In Hazardous Areas,Industrial Control Panels And Flameproof Installations |
| Model Number | LX 830 |
| Mounting Type | Wall Mount |
| Switch Variant | On-Off / On-Off-On / Reverse Forward |
| Operation Type | Rotary Manual Control |
| Construction | Heavy Duty Flameproof Housing |
| Business Type | Manufacturer, Supplier |
| Usage | Safe Electrical Power Connection In Hazardous Areas |
| Brand Name | Linex Flowsense |
| Type | Flameproof Switch Socket With Plug Top |
| Material | Die Cast Aluminium |
| Voltage | 230V AC / 415V AC |
| Current Rating | 16A / 25A / 32A |
| Model Number | LX 831 |
| Socket Material | Glass Filled Nylon |
| Pin Material | Brass |
| Mounting Type | Wall Mount |
| Pin Configuration | 3 Pin / 4 Pin / 5 Pin |
| Connection Type | P+N+E / TP+E / TP+N+E |

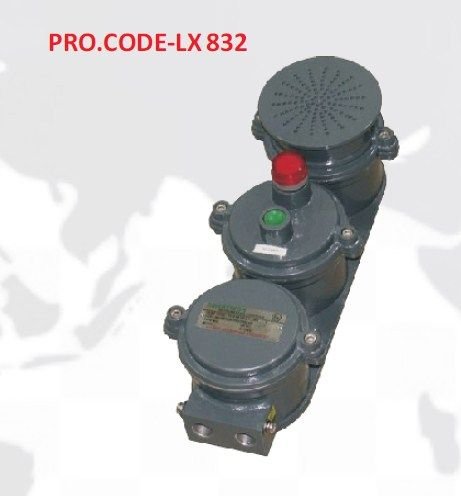

| Business Type | Manufacturer, Supplier |
| Sound Level | 100 DB |
| Usage | Audible Fault Alarm Acknowledgment System,Industrial Safety Alert Systems |
| Brand Name | Linex Flowsense |
| Model Number | LX 832 |
| Product Type | FLP/WP Hooter With Accept Button |
| Enclosure Material | Die Cast Aluminium |
| Power Supply | 230VAC / 110VAC / 12V DC / 24V DC |
| Cable Entry | 2 Nos / 3/4 Inch ET / M20 X 1.5P / 1/2 Inch NPT |
| Mounting Type | Wall Mount |
| Indicator Type | Red Fault Indicator |
| Button Function | Accept Button For Buzzer Mute |
